Craftsman Shake

The rustic charm of traditional shake

Colours

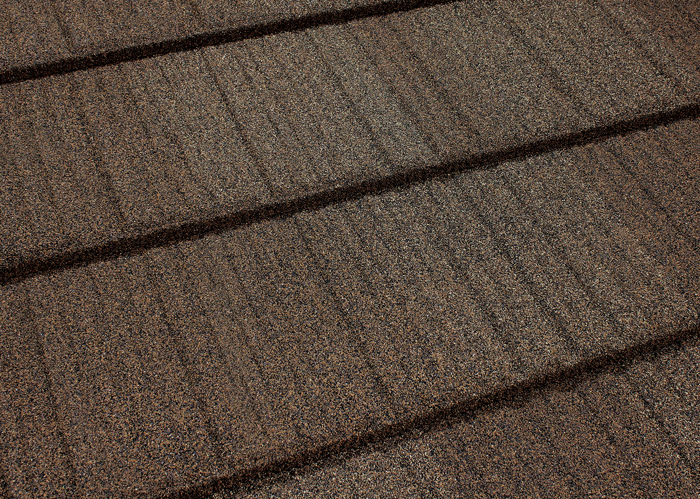

  • Birch

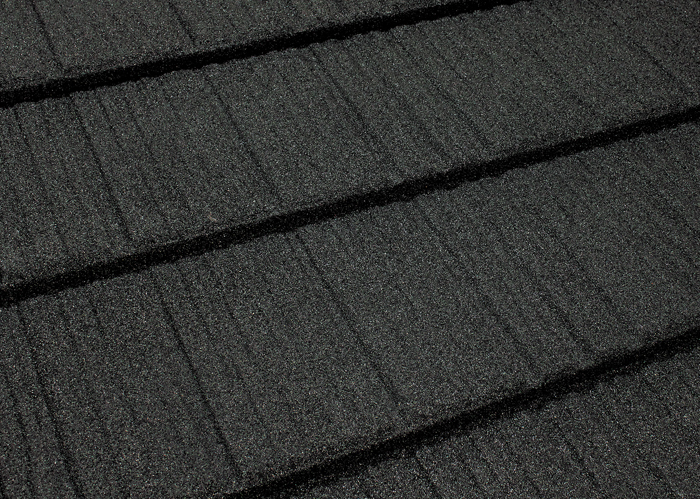

  • Black Iron

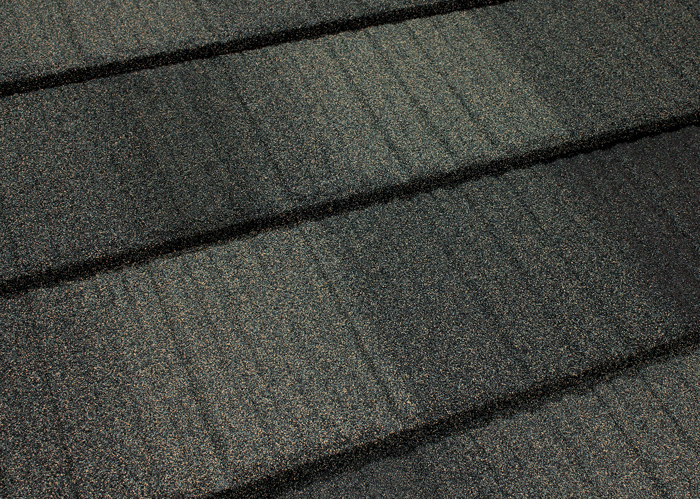

  • Ironstone

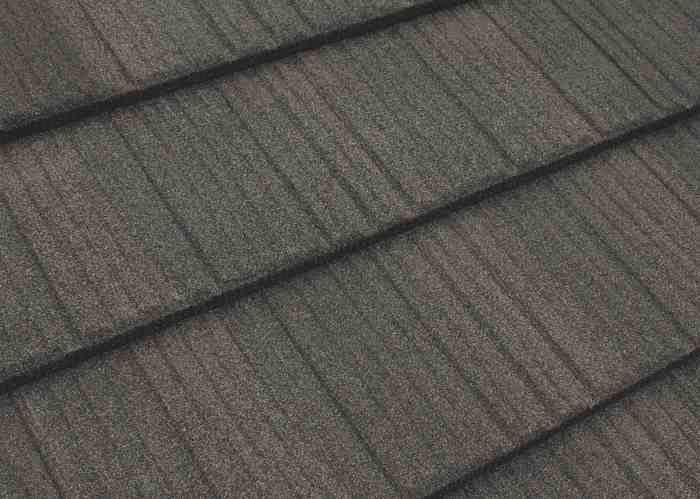

  • Sierra Wood

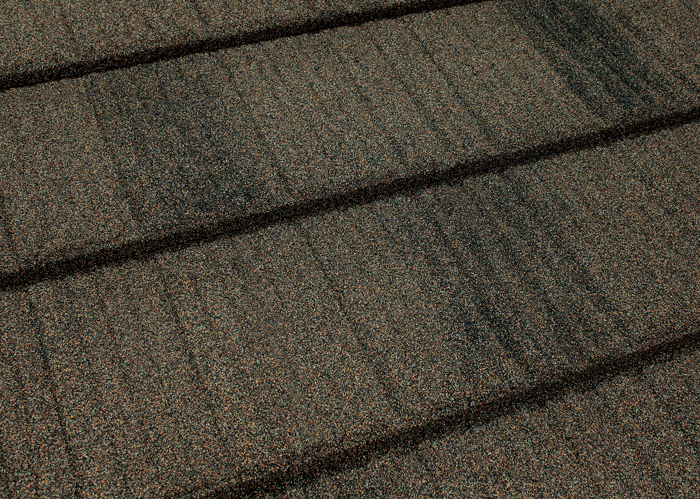

  • Weathered Wood

Colours made to order

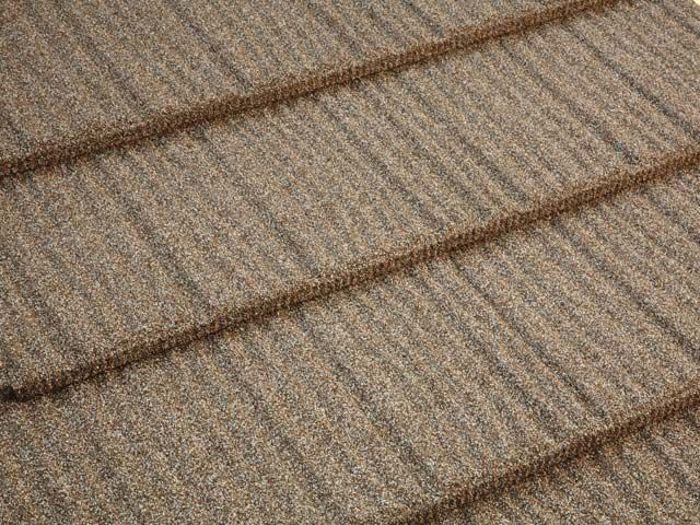

  • Cedar

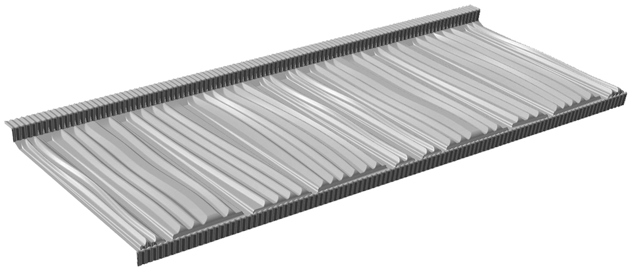

Product Specifications

Overall Length
52 5/32"
Length of cover
49 3/4"
Width of cover
14 1/2"
Tiles per Square
20
Weight per Tile
6.39 lbs
Weight per Square
128 lbs
Minimum roof pitch
3/12

Technical documents

  • All Craftsman Shake CAD files
  • Technical Data Sheet - Craftsman Shake
    • pdf
  • Craftsman Shake Brochure
    • pdf
  • Craftsman Shake - Change Of Pitch Detail - Solid Sheathing
  • Craftsman Shake - Change of Pitch Detail - Skip Sheathing
  • CAD Files View All Documents

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.

Actual installation appearance may vary from photographs or graphics. Tilcor makes no warranty of final installation appearance.
