CF Shake

Rustic charm of traditional shake with "Concealed Fastening" technology

Tilcor’s CF Shake has been specifically designed for the North American market to embrace the rustic charm of traditional Shake but with the strength and durability that can only come from a stone coated steel Tilcor panel. Its deep-ribbed profile enhances the shadow lines and creates visual contrast. With our world-first fully Concealed Fastening (CF) system, screws are completely hidden from sight and the elements, delivering the ultimate combination of beauty and weather tightness.

Extensive research and development in the design process makes Tilcor's CF Shake not only the most water-proof stone-coated steel Shake on the market but the most realistic looking and fastest to install. Made from the highest quality raw materials using New Zealand Steel ensures the durability and strength is second to none. The CF Shake and accompanying roofing accessories are engineered to interlock and overlap to resist wind lifting and keep out the harsh elements. At less than 150 lbs. / square, a Tilcor roof is a 'Lightweight Roofing System', so considerable cost savings can be achieved during new construction along with being the perfect replacement for your old existing roof. A Tilcor roof lets you improve the look and value of your home in a matter of days.

Get a quote Technical documents

Colours

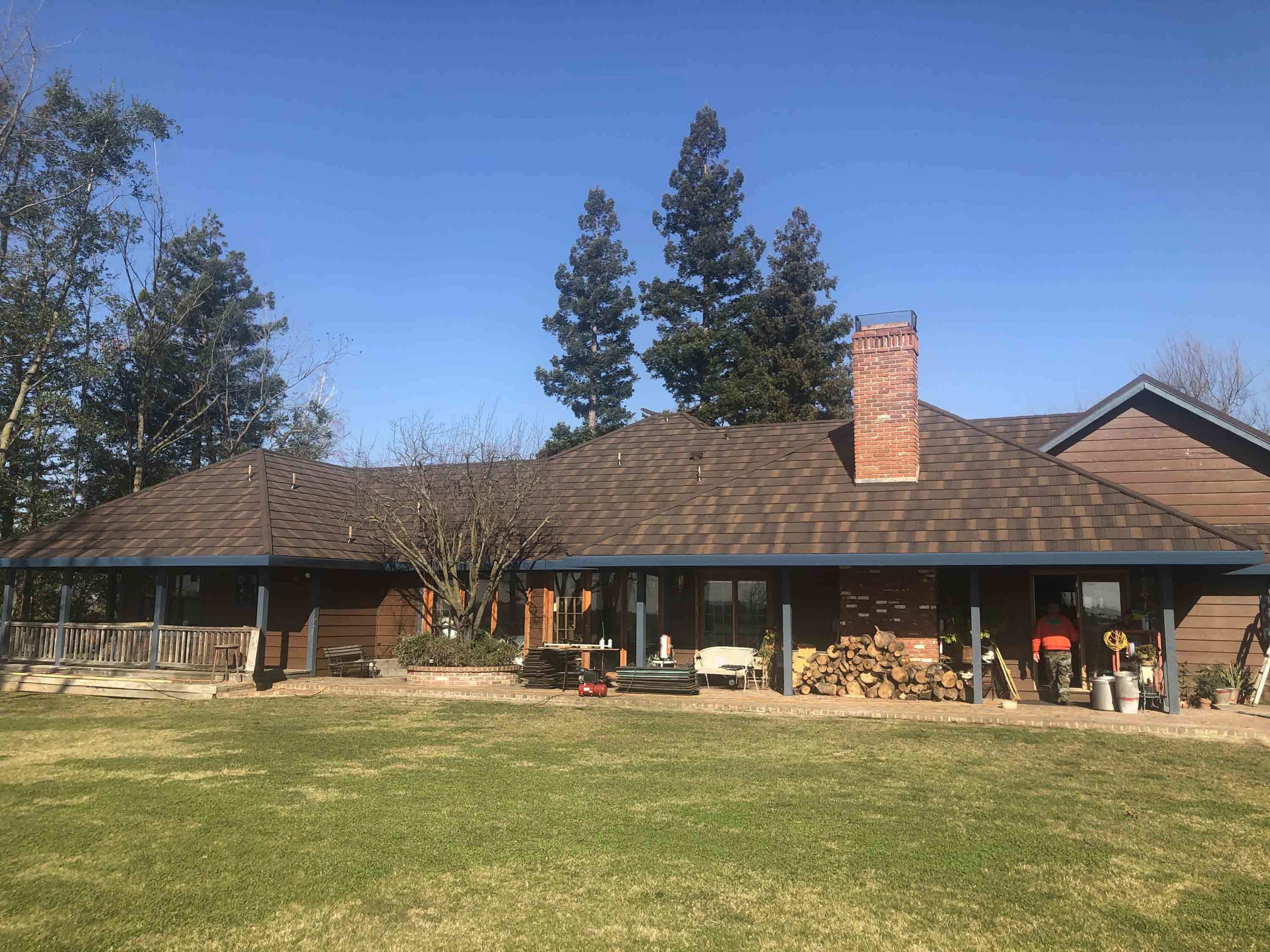

Barkwood

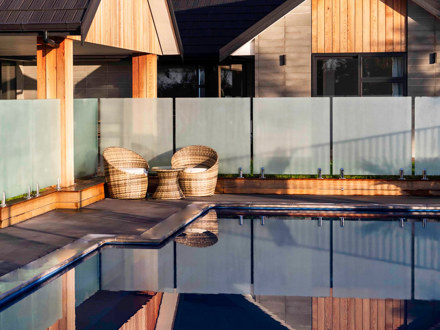

Charcoal Blend
Ironstone
Sierra Wood
Weathered Wood

Product Specifications

Overall Length: 52 5/8"
Length of cover: 49 5/8"
Width of cover: 14 9/16"
Tiles per Square: 20
Weight per Tile: 7.05 lbs
Weight per Square: 141 lbs
Minimum roof pitch: 3/12

Technical documents

CF Shake Brochure
- pdf
Download
Technical Data Sheet - CF Shake
- pdf
Download
All CF Shake CAD files
- DWG
- DXF
- PDF
CF Shingle - Change of Pitch Detail - Solid Sheathing
- DWG
- DXF
- PDF
CF Shingle - Valley Detail - Solid Sheathing
- DWG
- DXF
- PDF
CAD Files View All Documents

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.

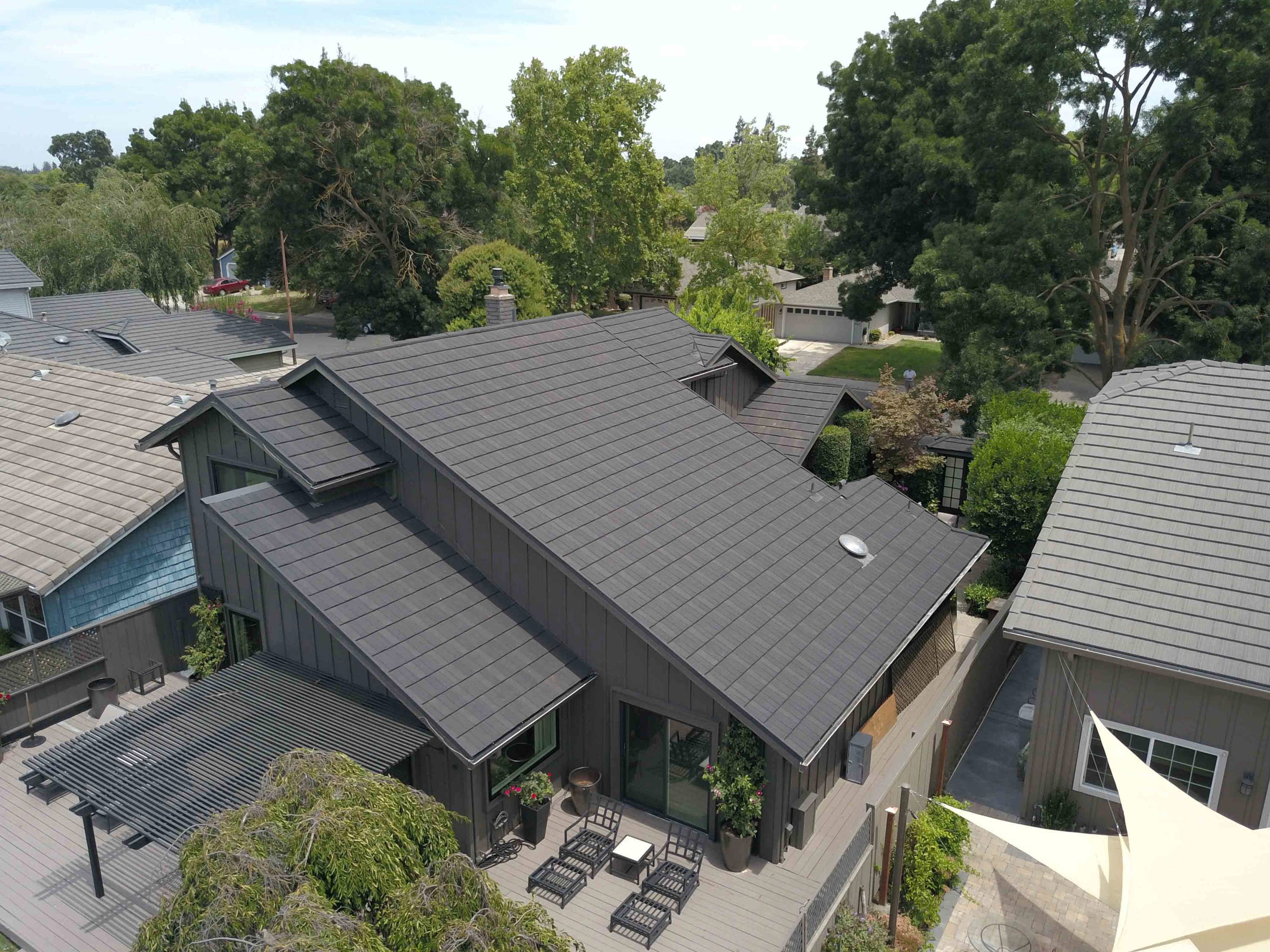

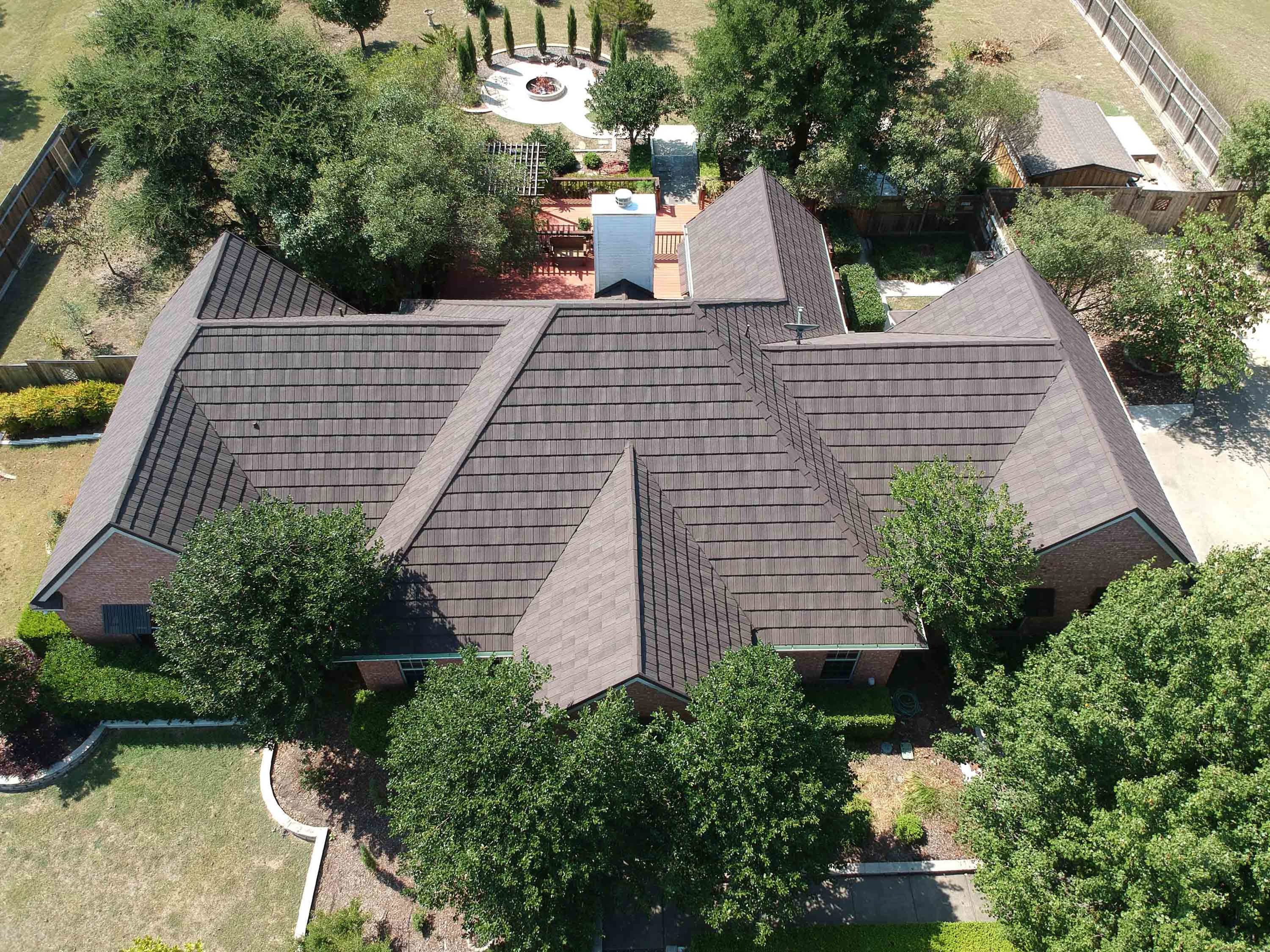

Actual installation appearance may vary from photographs or graphics. Tilcor makes no warranty of final installation appearance.
