Tudor

The elegance and style of Tudor

The Tilcor Tudor textured-finish tile exudes a traditional, European style reminiscent of the Tudors of a by-gone age. Its elegant and undulating form is well suited to both modern and traditional homes.With Tilcor Tudor you can enjoy this look combined with all the benefits of steel, exceptional weather and fire resistance, and long life. Tilcor Tudor textured-finish tiles are available in a wide selection of colours to enhance any exterior colour scheme.

Get a quote Technical documents

Textured

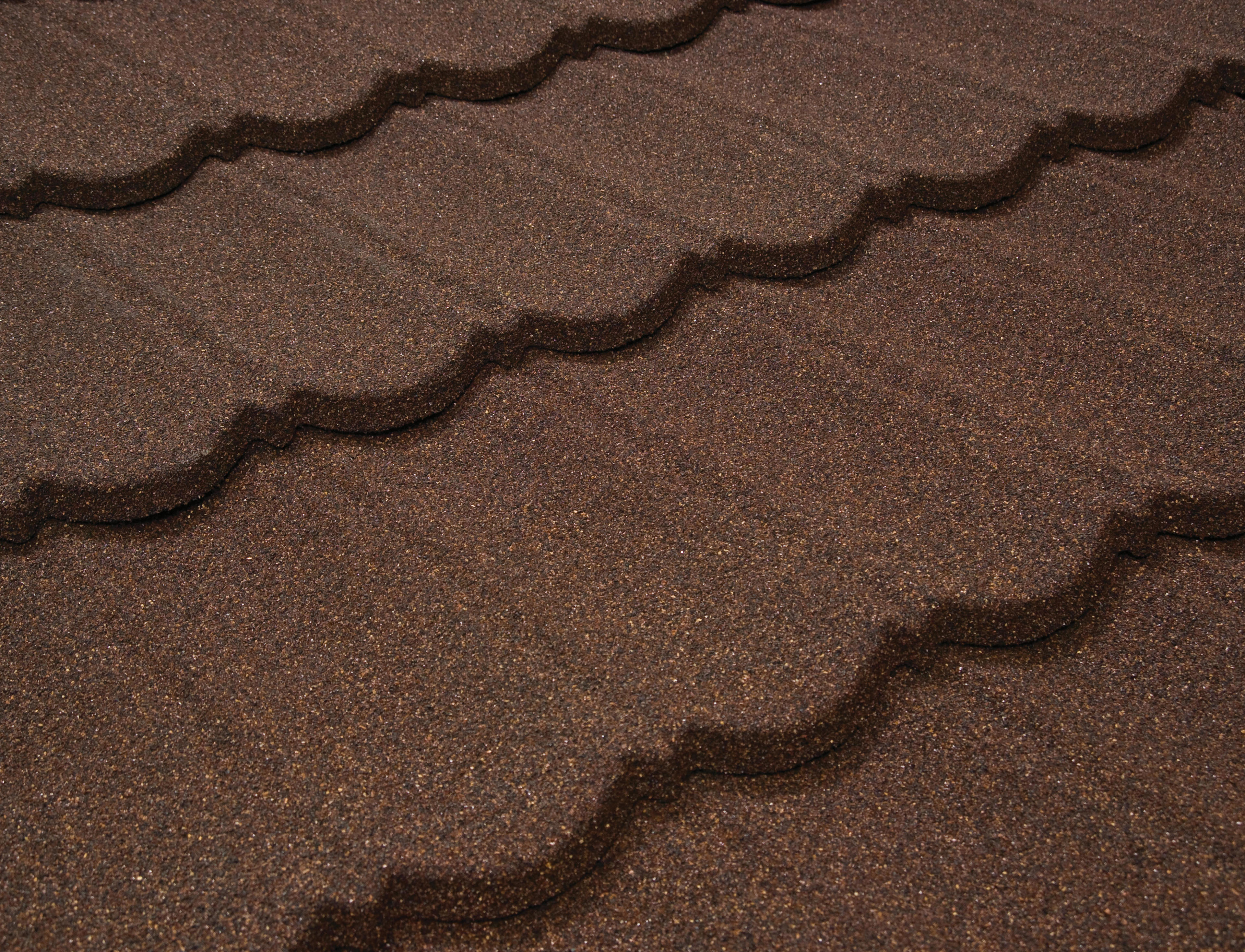

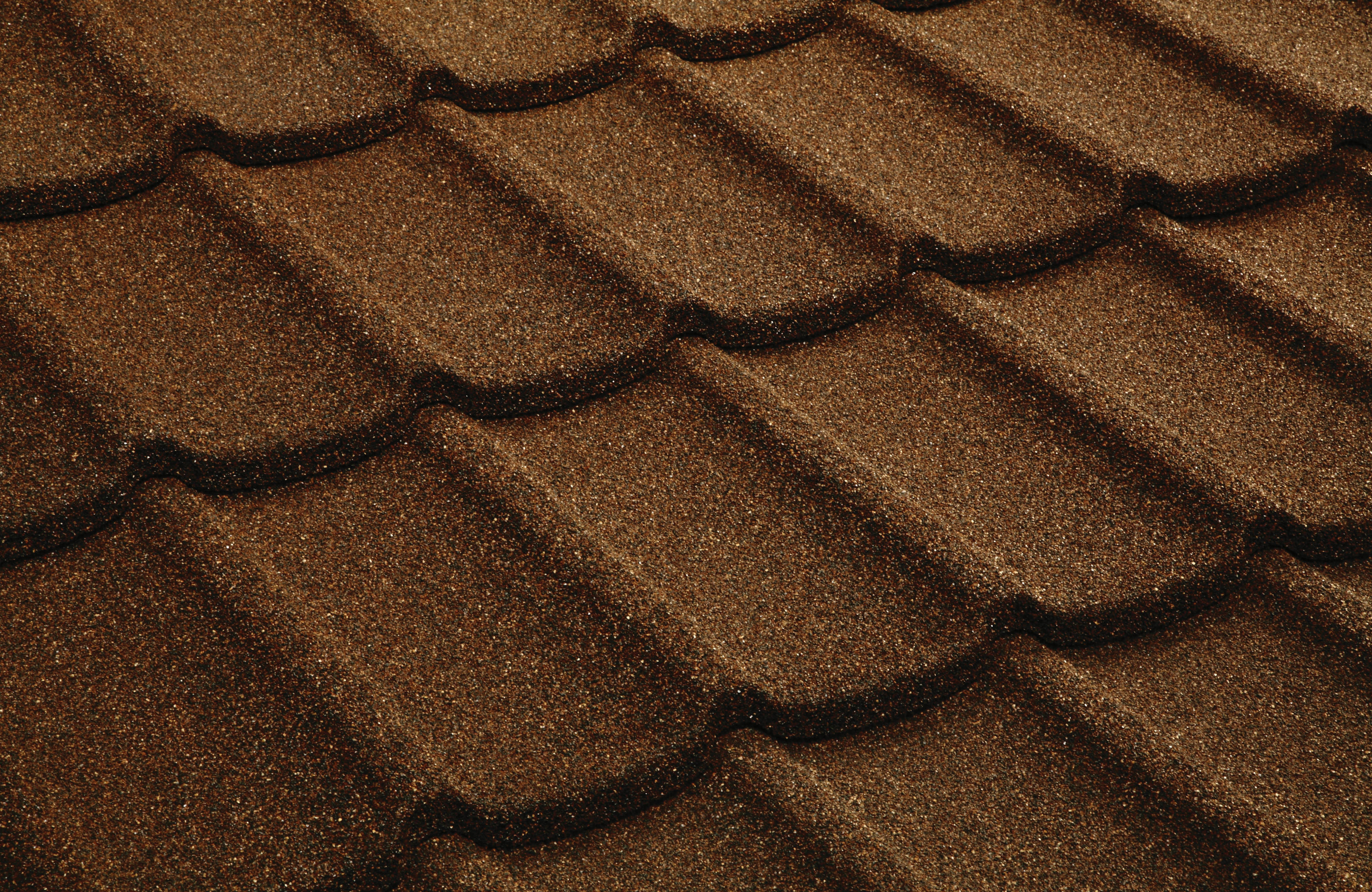

Brown Bark

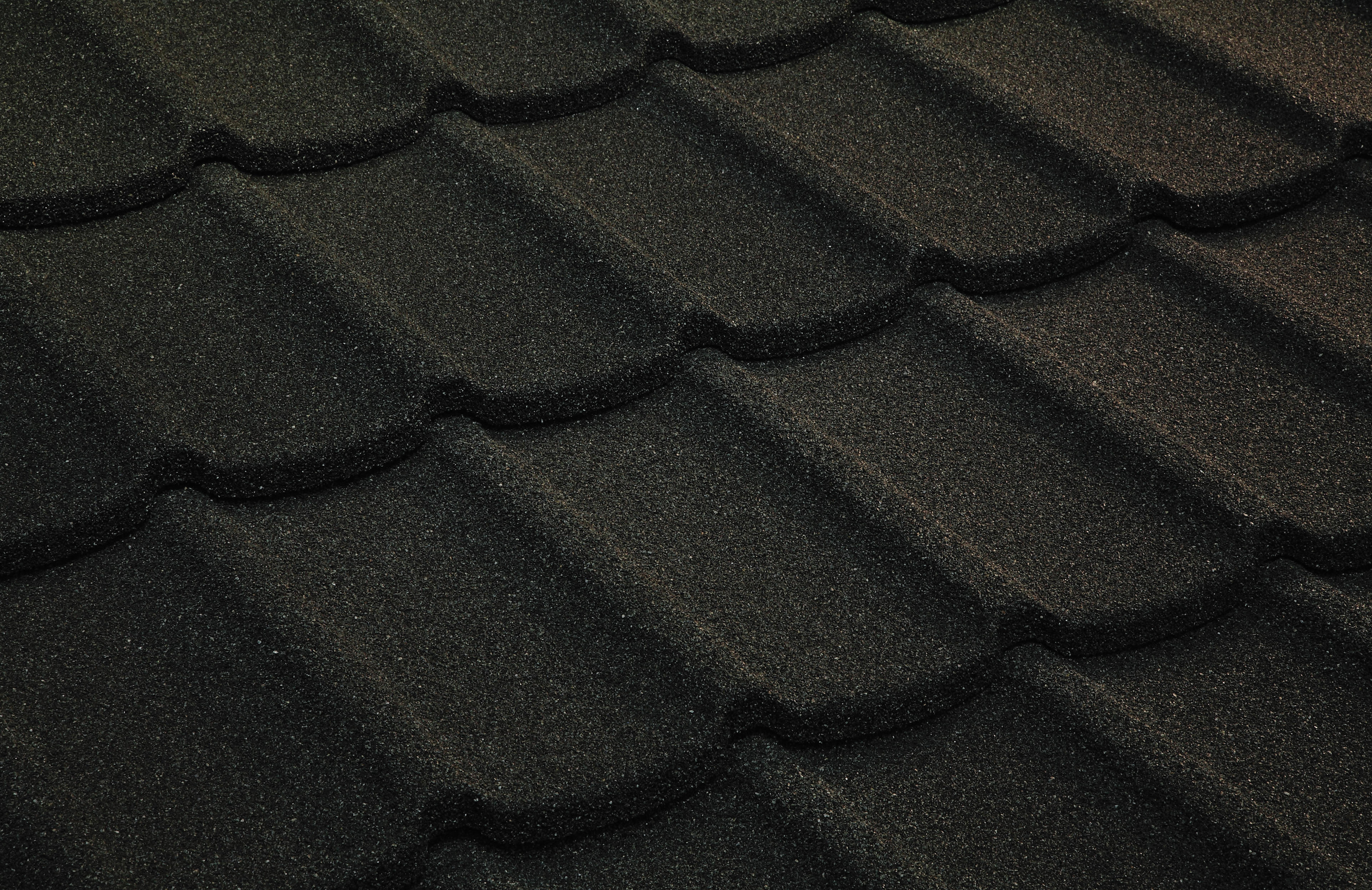

Charcoal

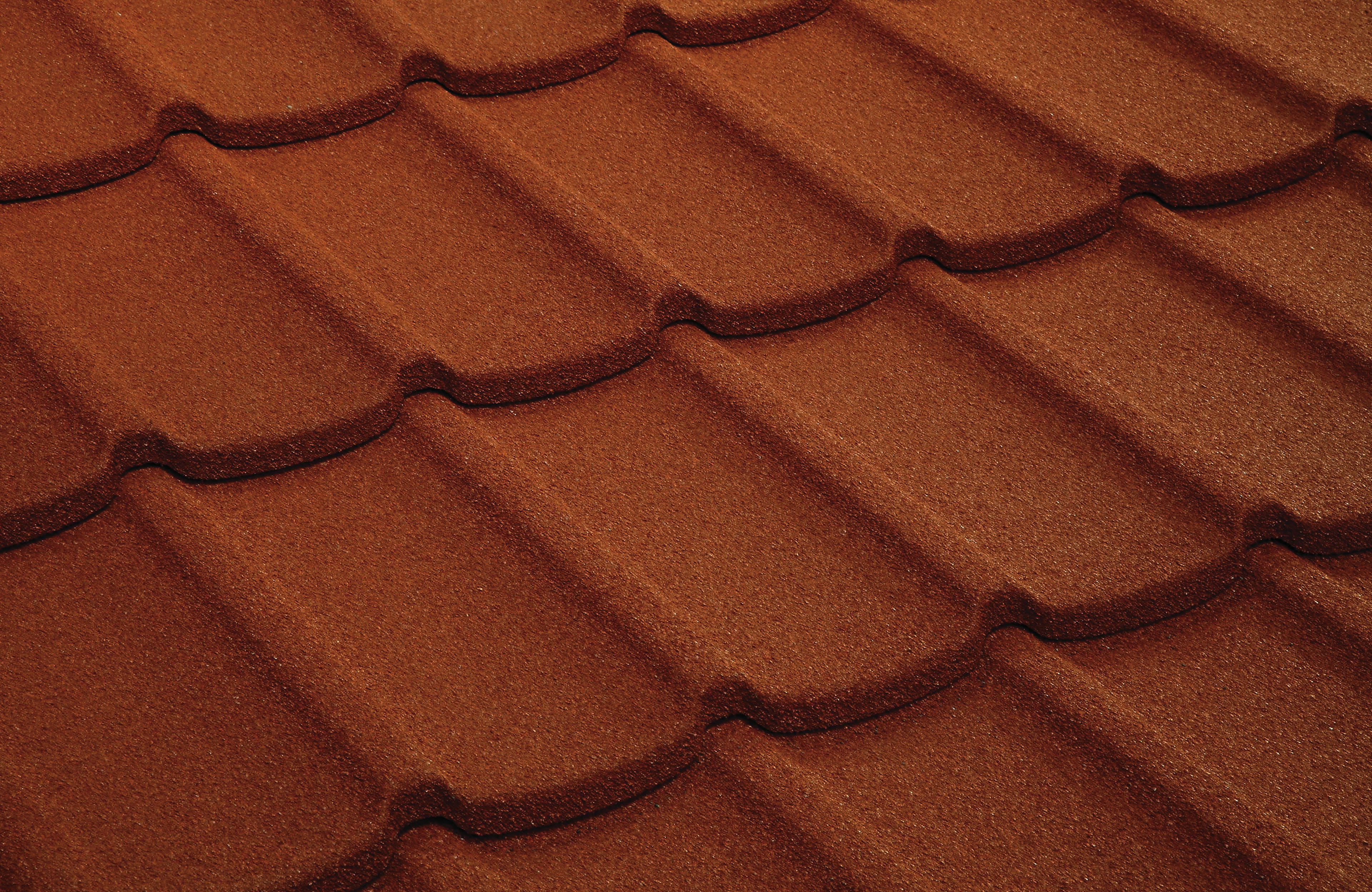

Terracotta

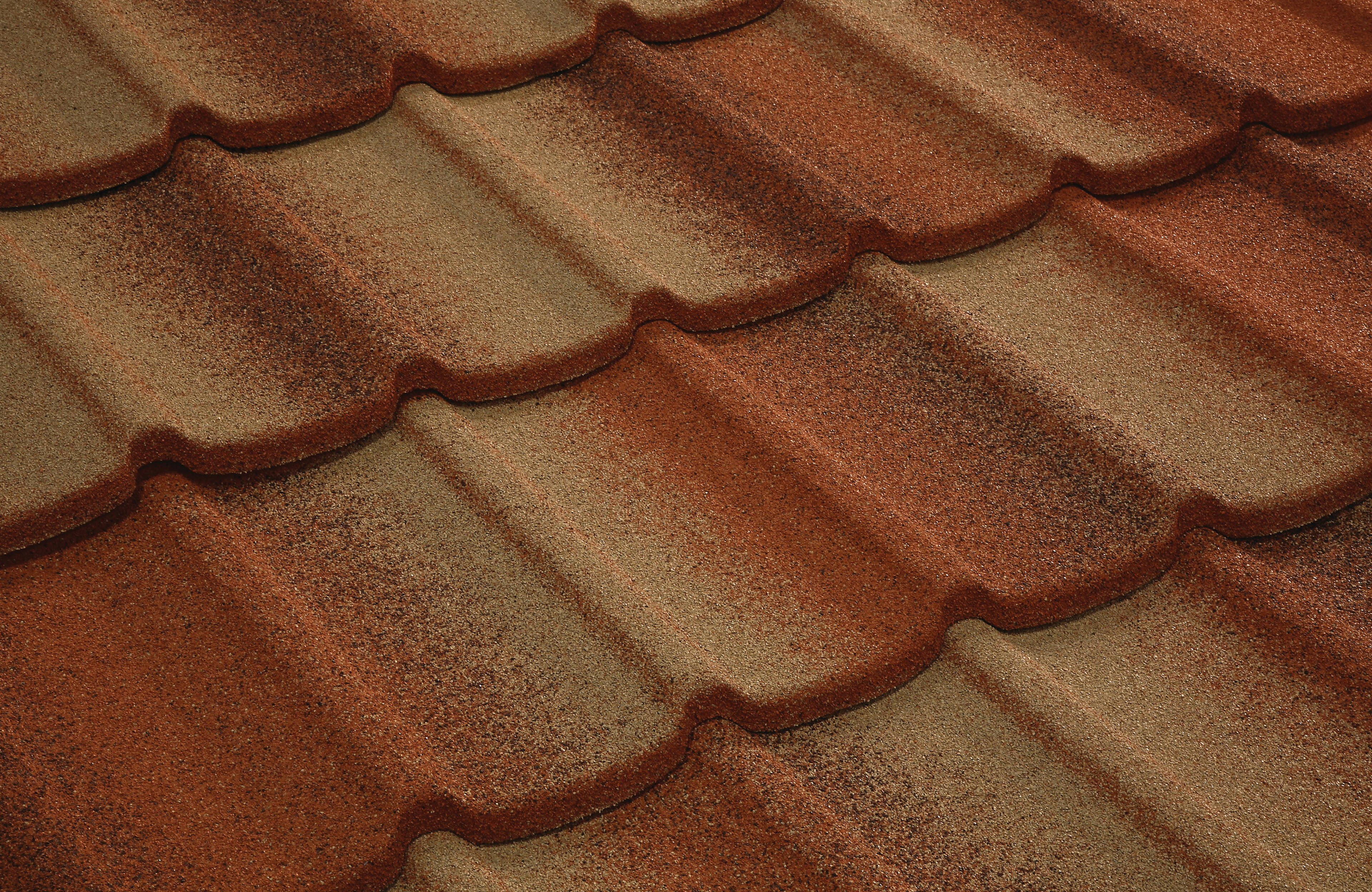

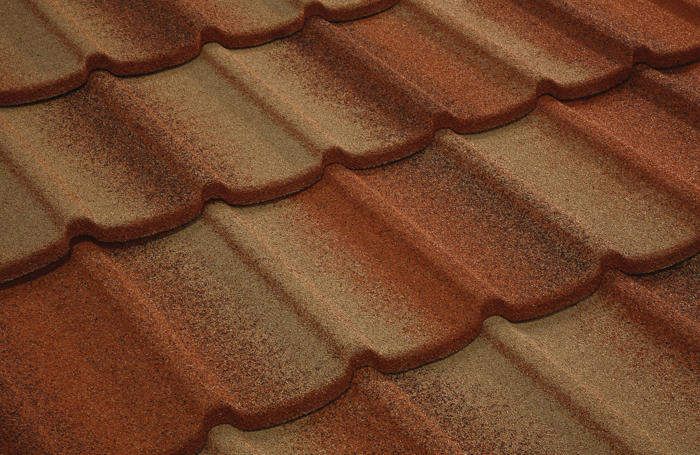

Lisbon

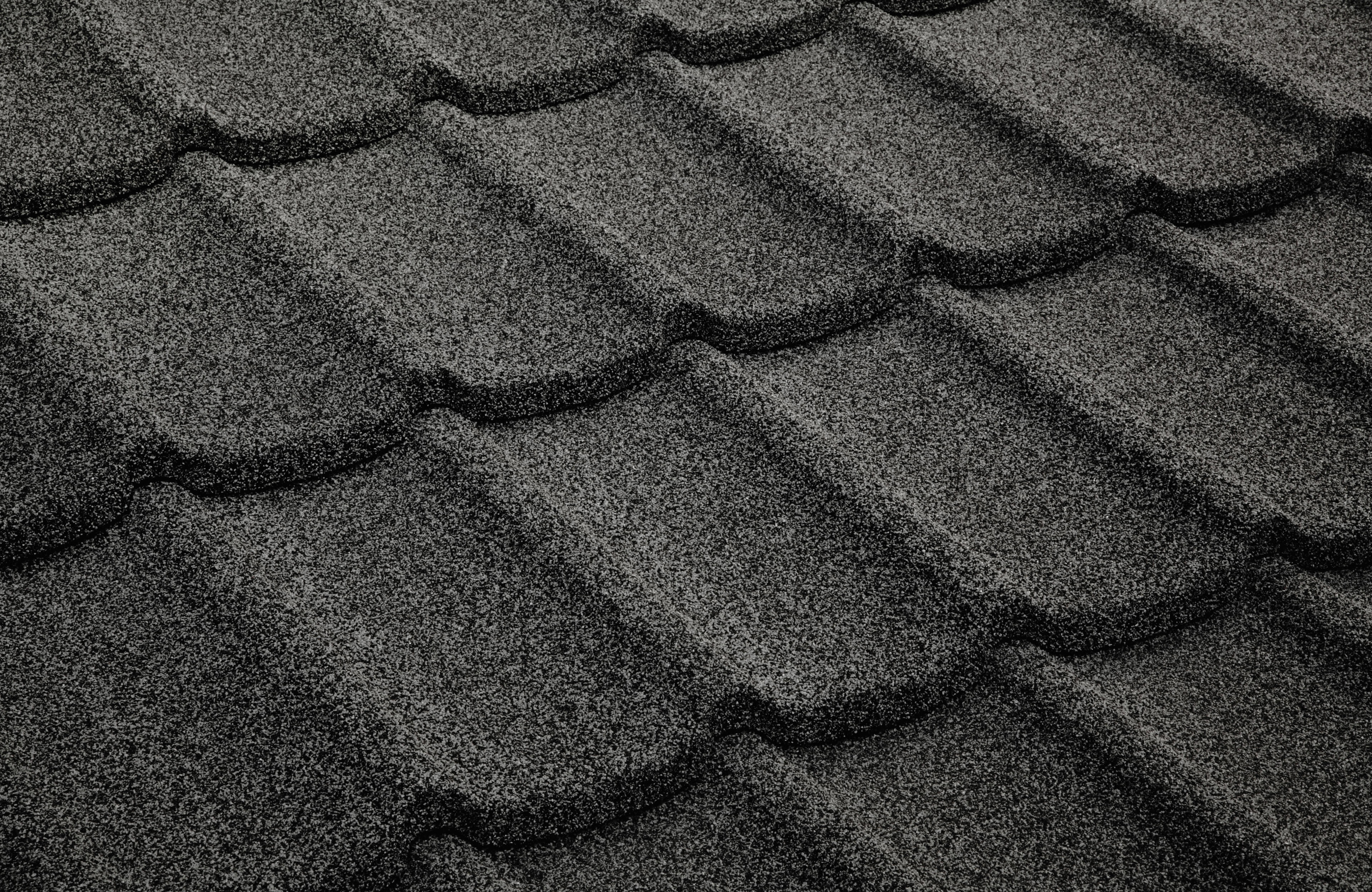

Slate

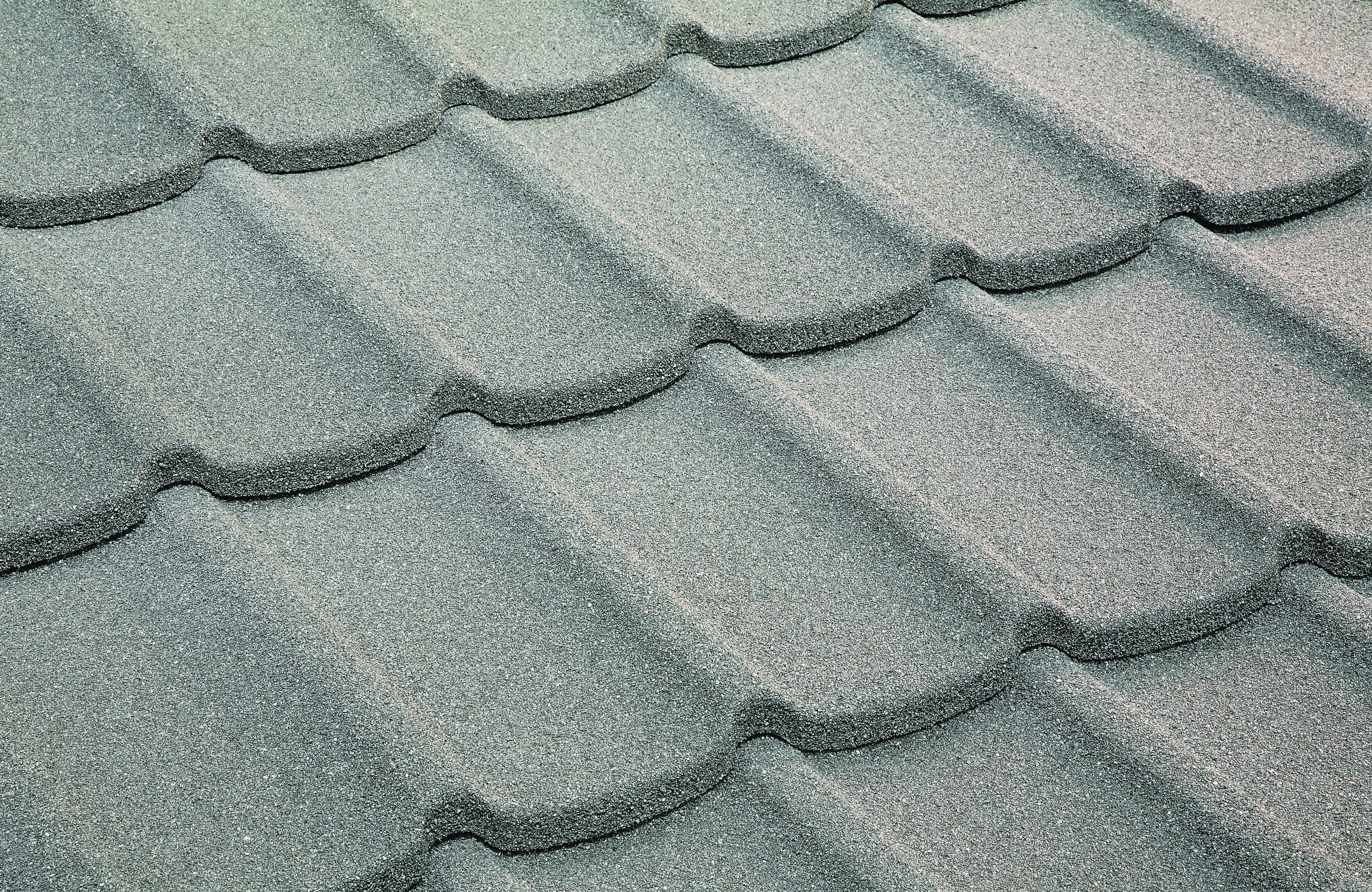

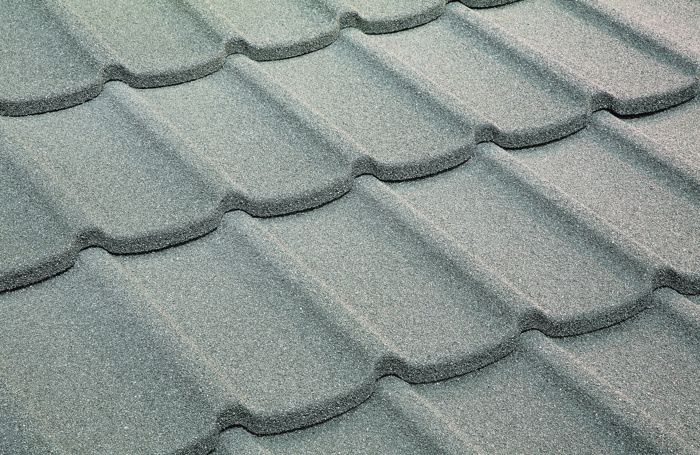

Silver Grey

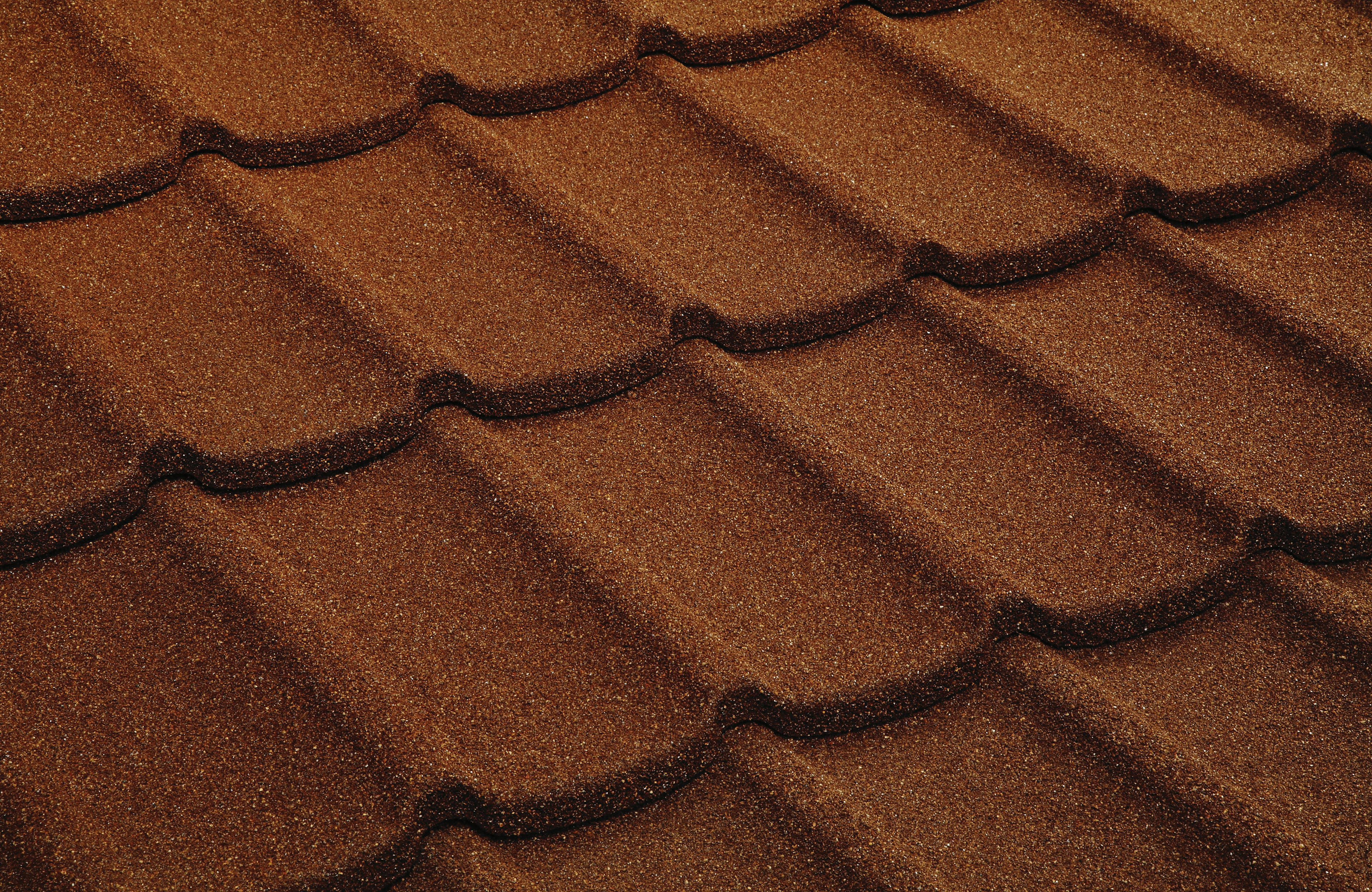

Coffee Brown

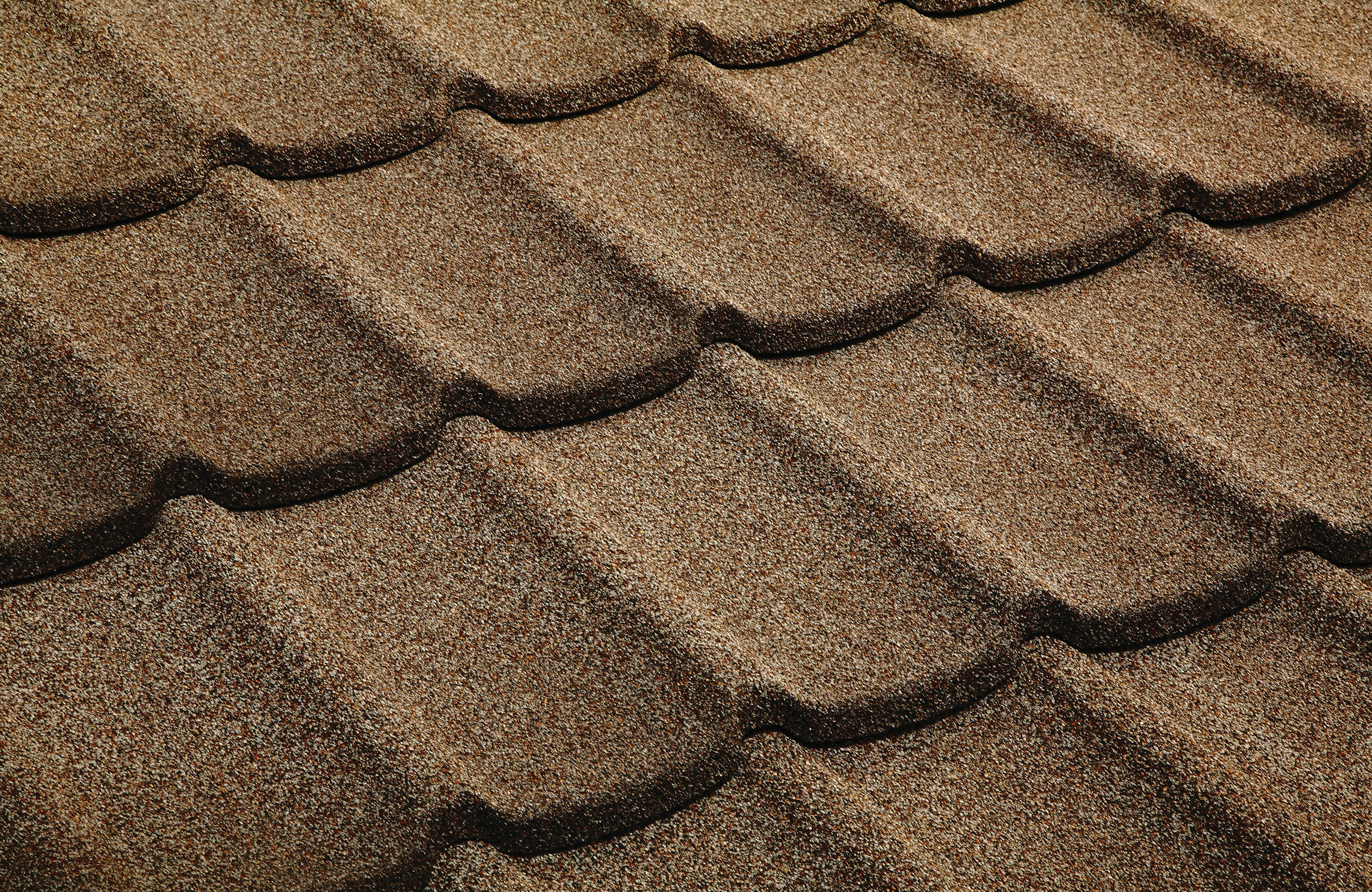

Cedar

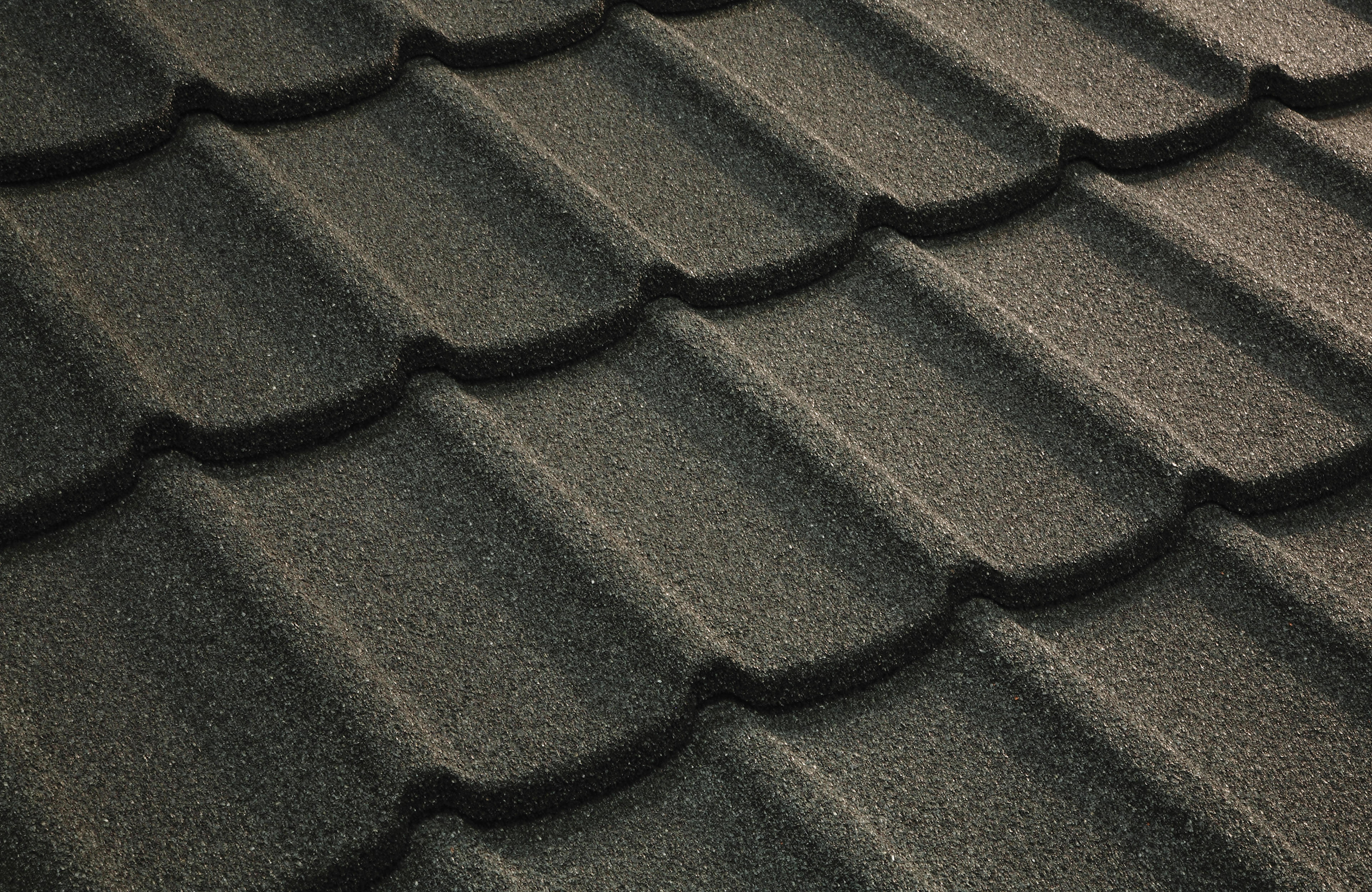

Olive

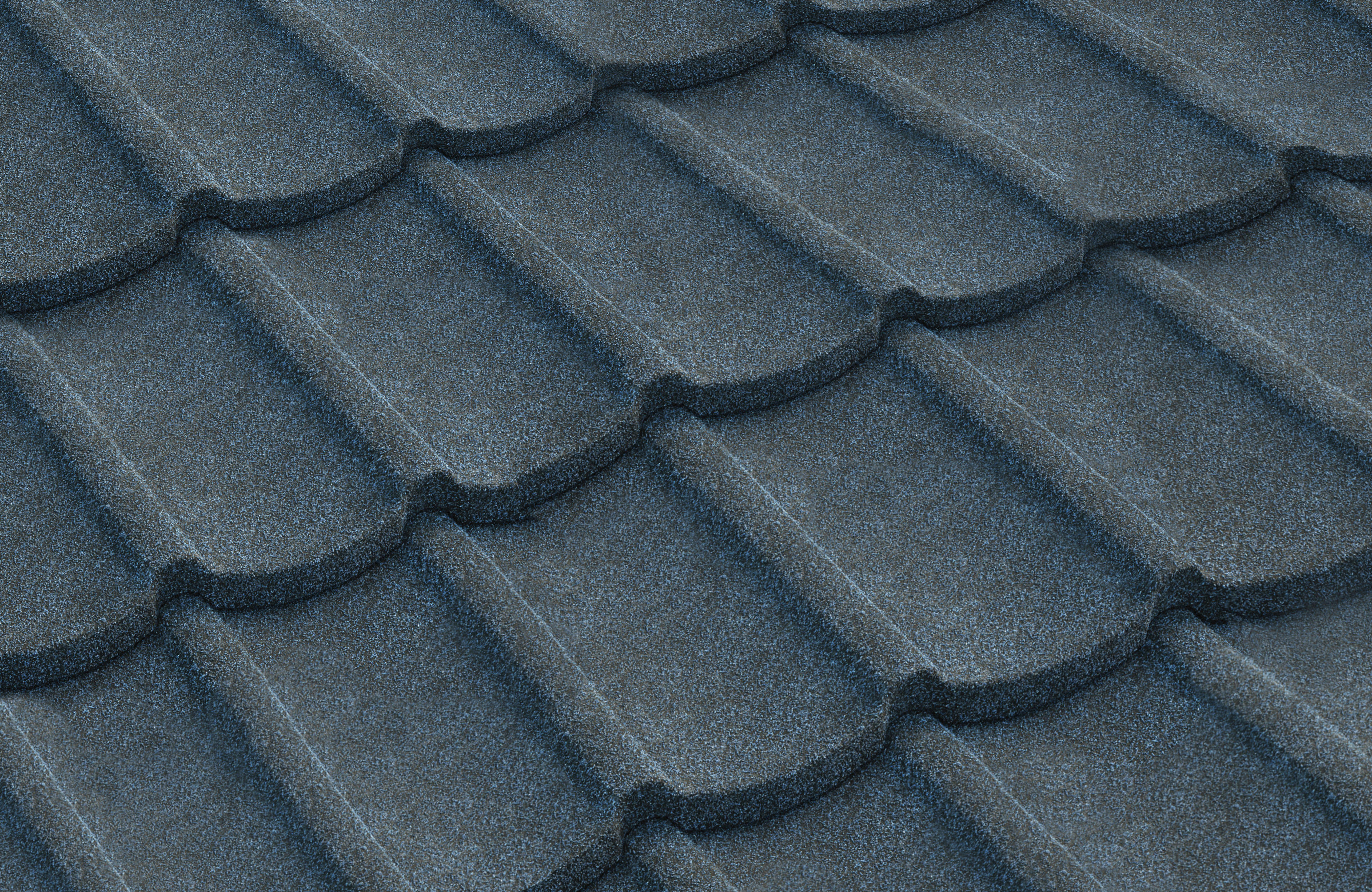

Midnight Blue

Product specifications

Overall Length: 1335 mm
Length of cover: 1260 mm
Width of cover: 368 mm
Roof cover /Tile: 0.46 m
Tiles /m2: 2.15
Weight /Tile: 3.0 kg
Weight /m2: 6.40 kg
Minimum roof pitch: 12.5 degrees

Technical documents

Tudor Brochure
- pdf
Download
Tudor Product Specifications
- pdf
Download
Tudor Technical Data Sheet
- pdf
Download
Tudor - Change of Pitch Detail
- DWG
- DXF
- PDF

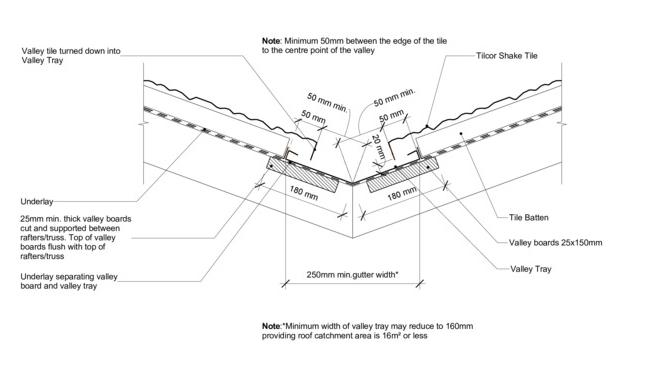

Tudor - Valley Detail
- DWG
- DXF
- PDF
View all CAD Drawings View all documents

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
