CF Shingle

Shingle style with Concealed Fastening technology

Our CF Shingle has been specifically designed for the North American market to resemble the look of traditional Asphalt Shingles but without the inherent ongoing issues that many home owners face. This low profile Stone Coated Steel panel, comes with patterns of shading and colours that reflect the popular styles but with the bonus of a far superior serviceable life.With our world-first fully Concealed Fastening (CF) system, screws are completely hidden from sight and the elements, delivering the ultimate combination of beauty and weathertightness. Our unique design allows us to overlay our CF Shingle products over existing Asphalt Shingles roofs.

Get a quote Technical documents

Textured

Arctic Grey

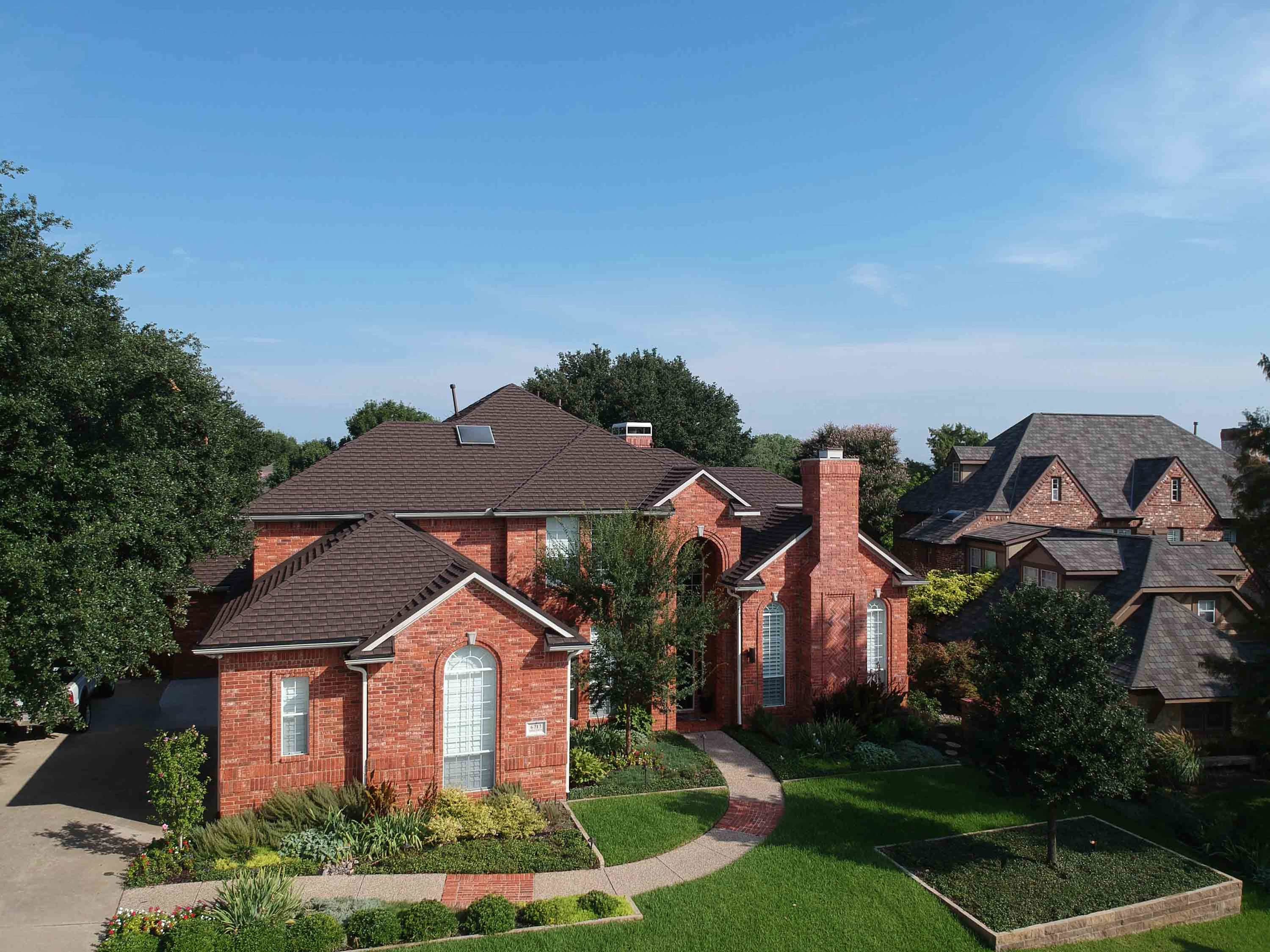

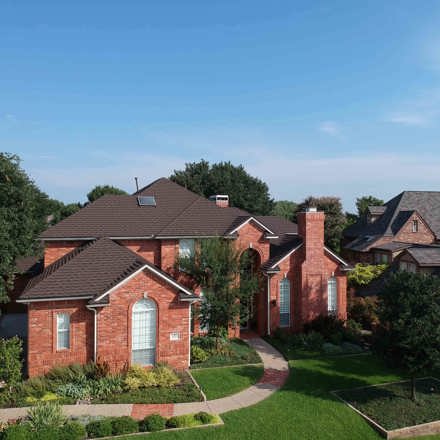

Barkwood

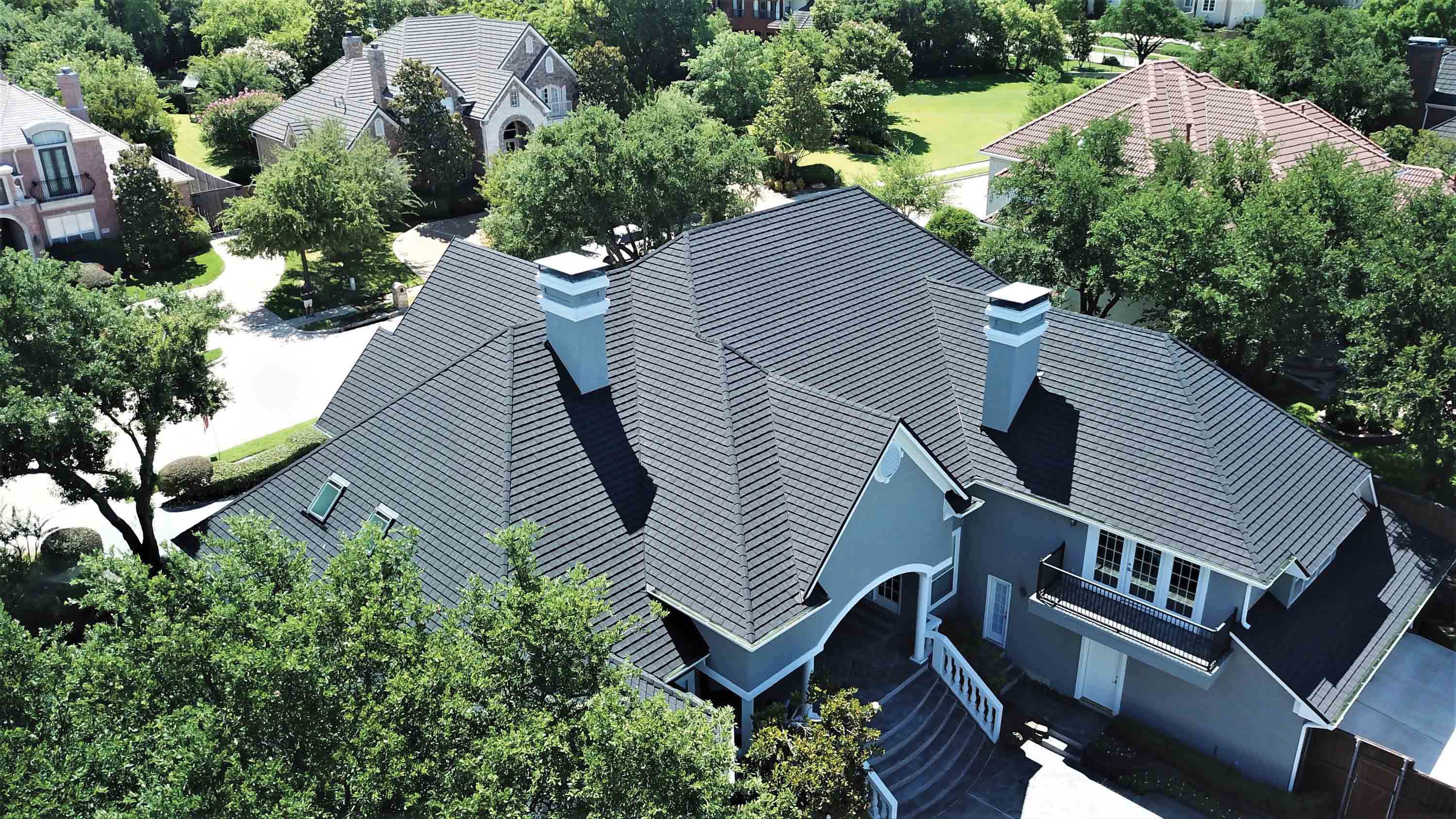

Charcoal Blend
Estate Grey

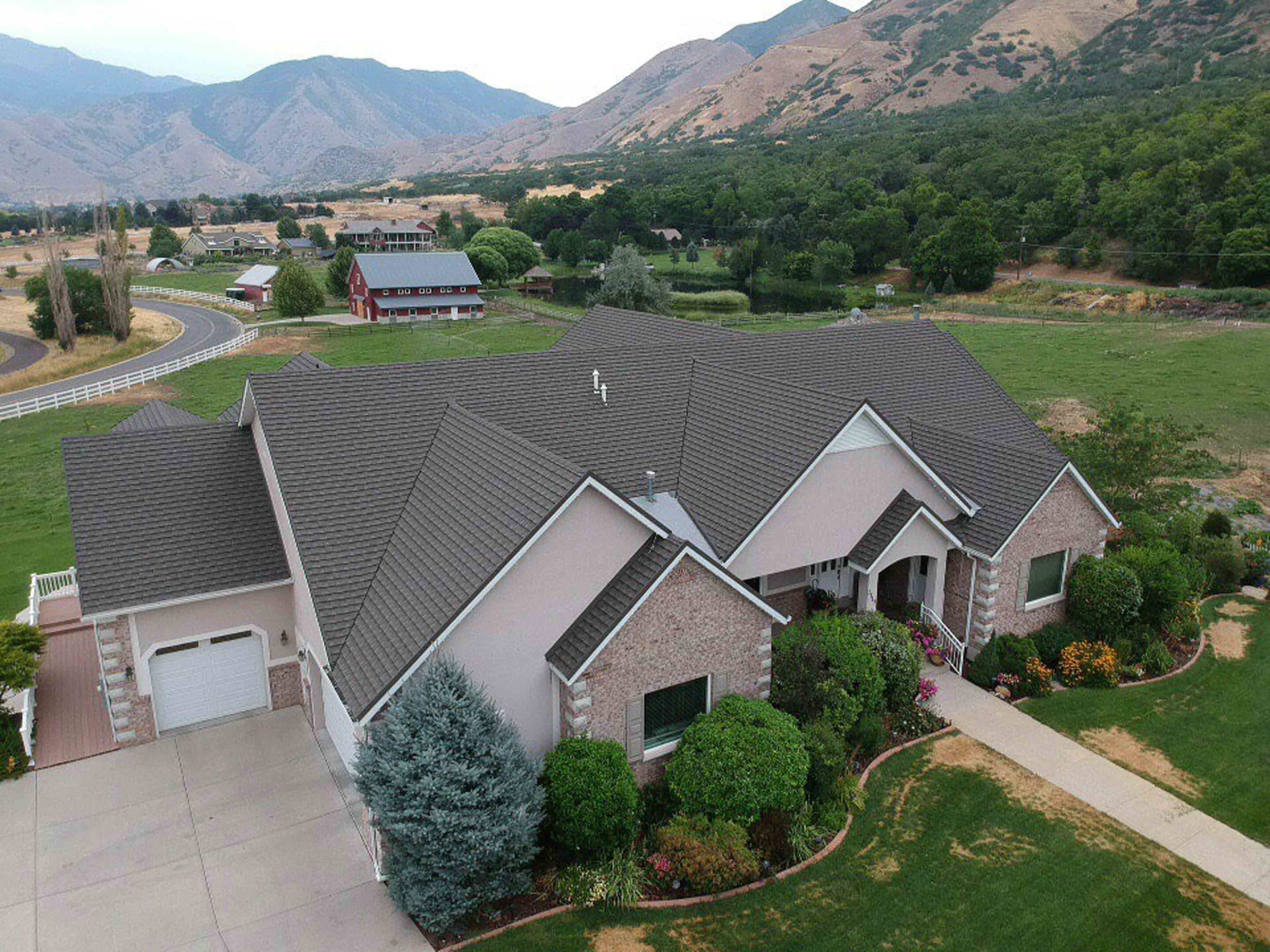

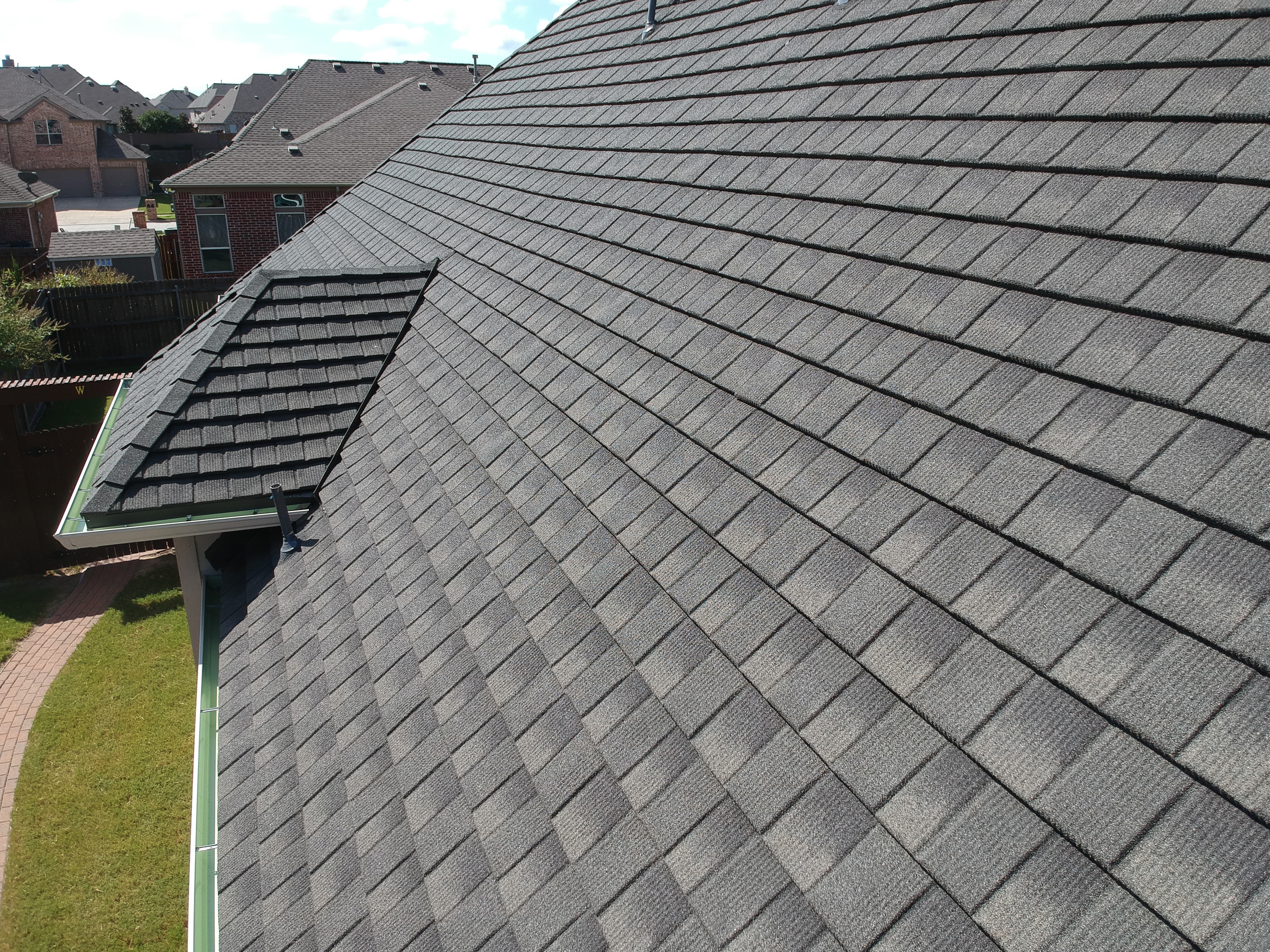

Oakwood

Product specifications

Overall Length: 1335 mm
Length of cover: 1260 mm
Width of cover: 370 mm
Roof cover /Tile: 0.46 m
Tiles /m2: 2.15
Weight /Tile: 3.5 kg
Weight /m2: 7.5 kg
Minimum roof pitch: 12.5 degrees

Technical documents

CF Shingle Brochure
- pdf
Download
CF Shingle Product Specifications
- pdf
Download
CF Shingle Technical Data Sheet
- pdf
Download
CF Shingle - Change of Pitch Detail
- DWG
- DXF
- PDF
CF Shingle - Valley Detail
- DWG
- DXF
- PDF
View all CAD Drawings View all documents

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
