CF Shake

Rustic charm of traditional shake with "Concealed Fastening" technology

Tilcor’s CF Shake has been specifically designed for the North American market to embrace the rustic charm of traditional Shake but with the strength and durability that can only come from a stone coated steel Tilcor panel. Its deep-ribbed profile enhances the shadow lines and creates visual contrast. With our world-first fully Concealed Fastening (CF) system, screws are completely hidden from sight and the elements, delivering the ultimate combination of beauty and weathertightness.

Get a quote Technical documents

Textured

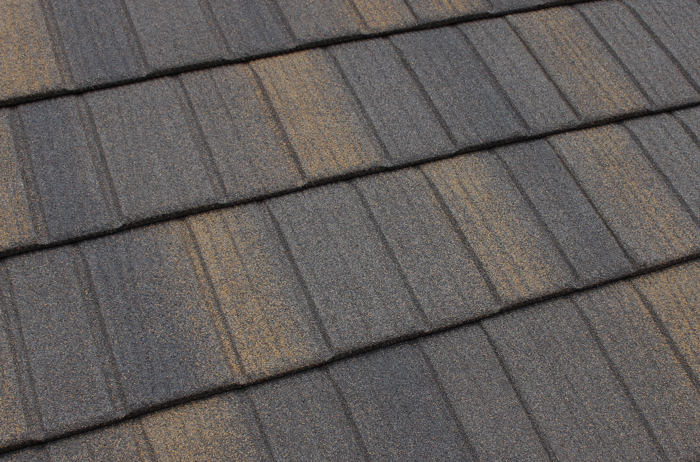

Barkwood

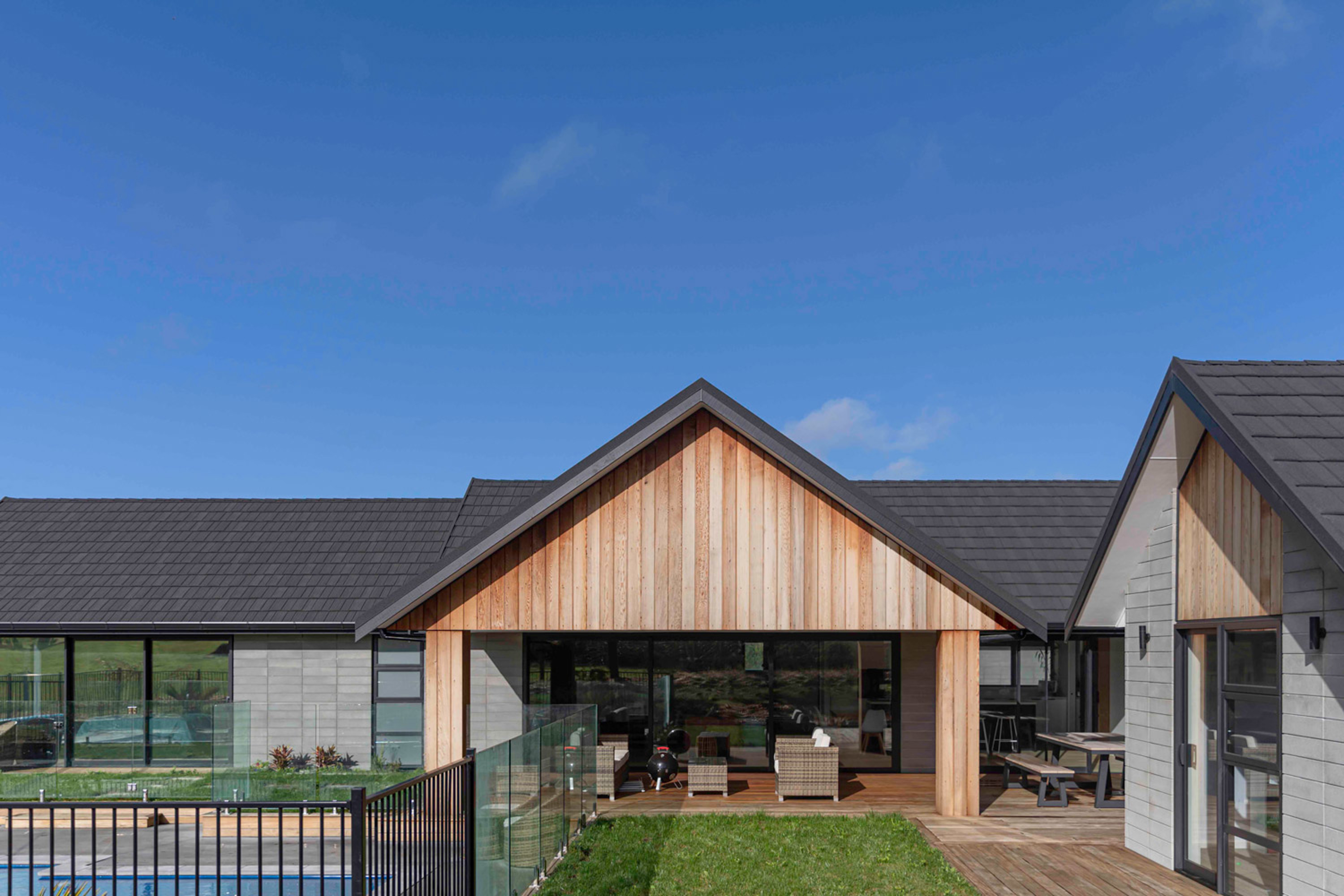

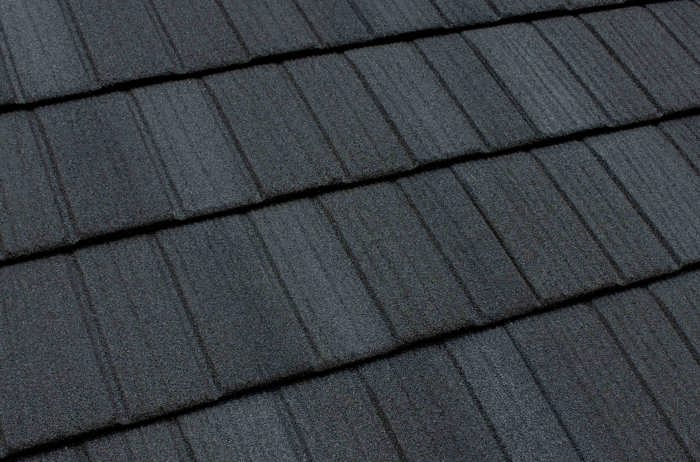

Charcoal Blend

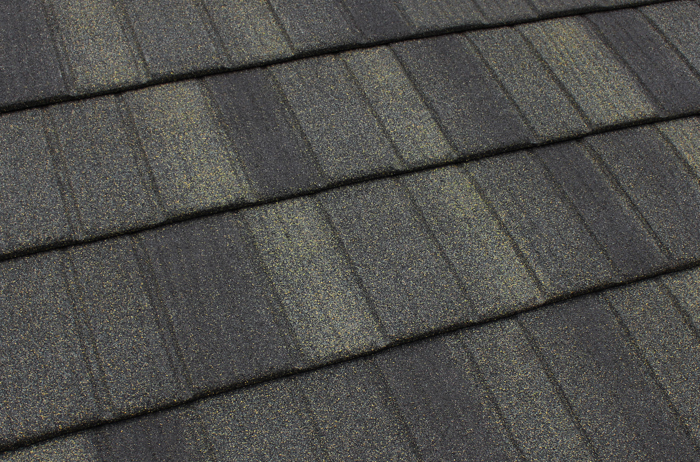

Ironstone

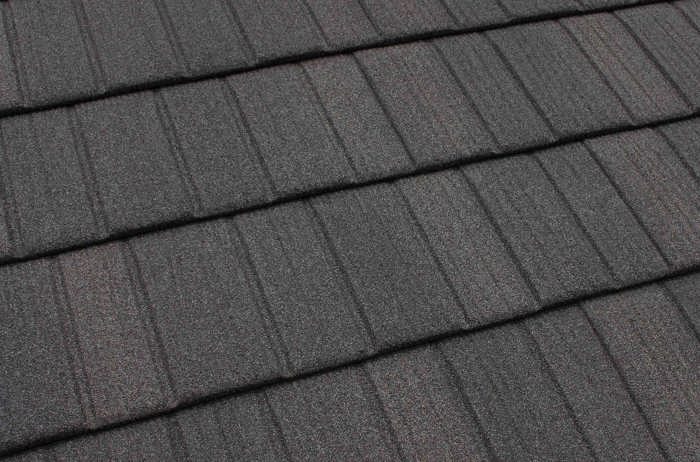

Sierra Wood

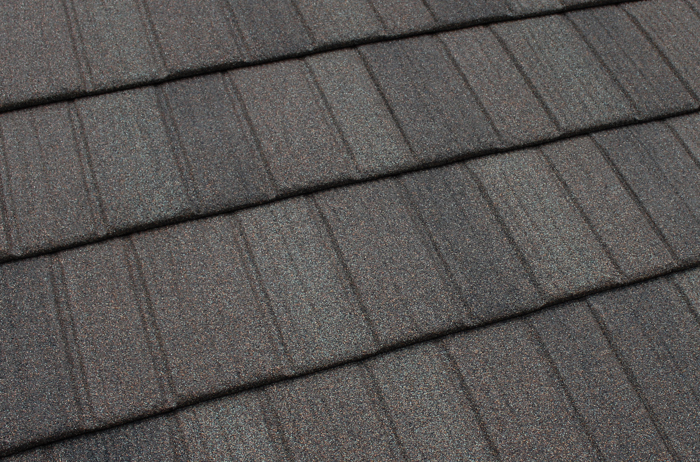

Weathered Wood

Product specifications

Overall Length: 1335 mm
Length of cover: 1260 mm
Width of cover: 370 mm
Roof cover /Tile: 0.46 m
Tiles /m2: 2.15
Weight /Tile: 3.5 kg
Weight /m2: 7.5 kg
Minimum roof pitch: 15 degrees

Technical documents

CF Shake Brochure
- pdf
Download
CF Shake Product Specifications
- pdf
Download
CF Shake Technical Data Sheet
- pdf
Download
CF Shake - Change of Pitch Detail
- DWG
- DXF
- PDF
CF Shake - Valley Detail
- DWG
- DXF
- PDF
View all CAD Drawings View all documents

Tilcor performance guarantees

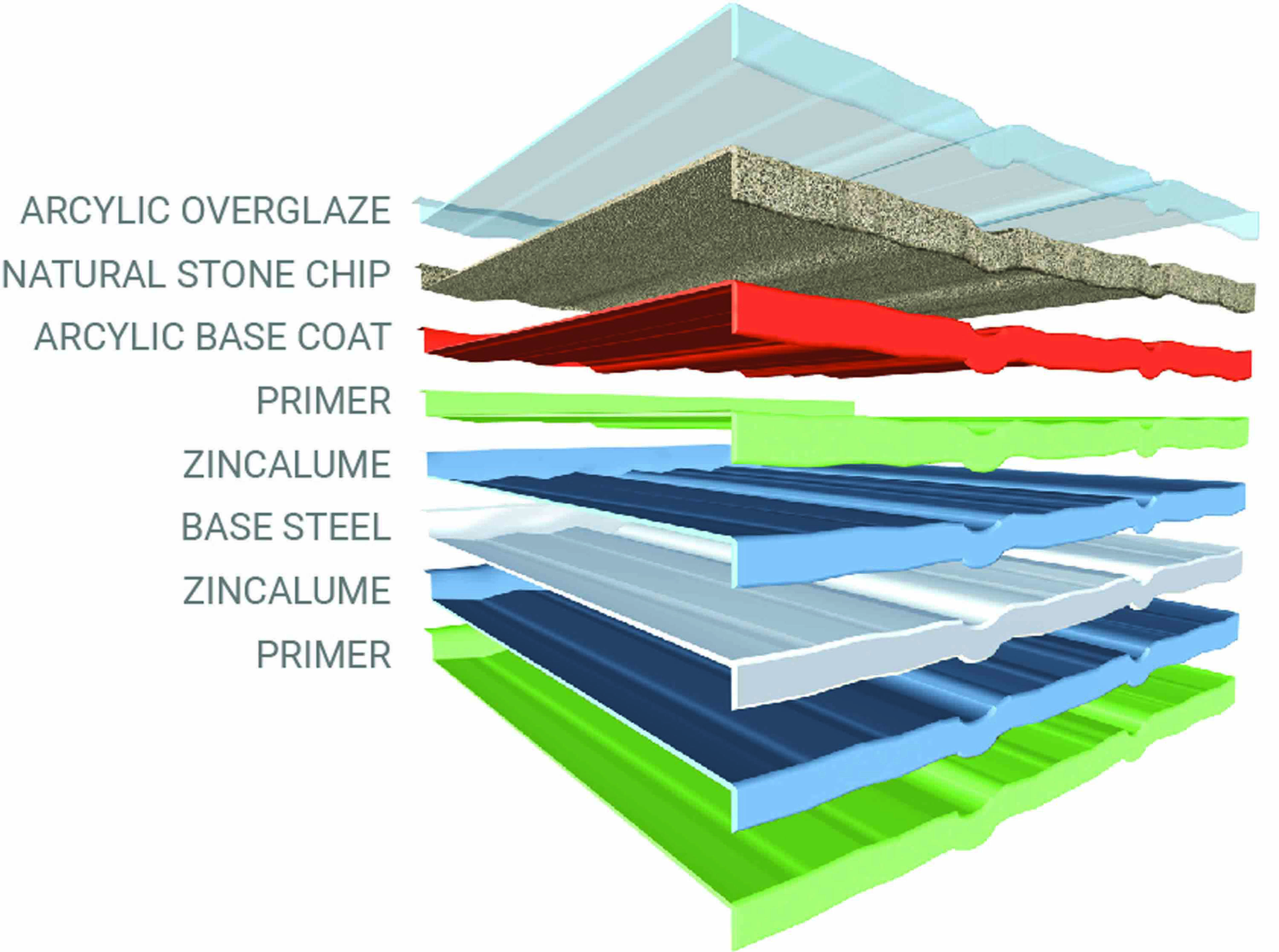

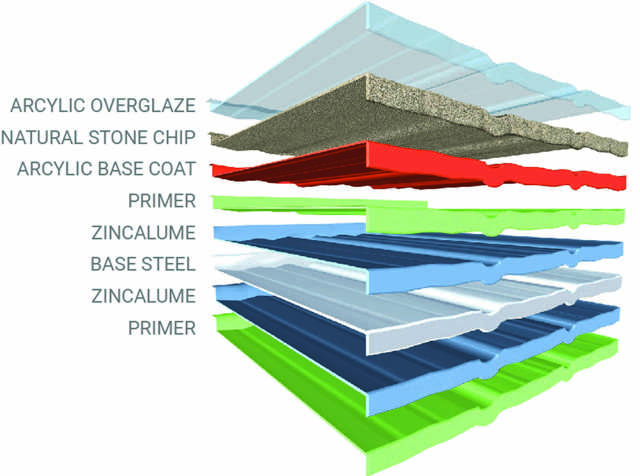

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
